MultiPlus
The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
-

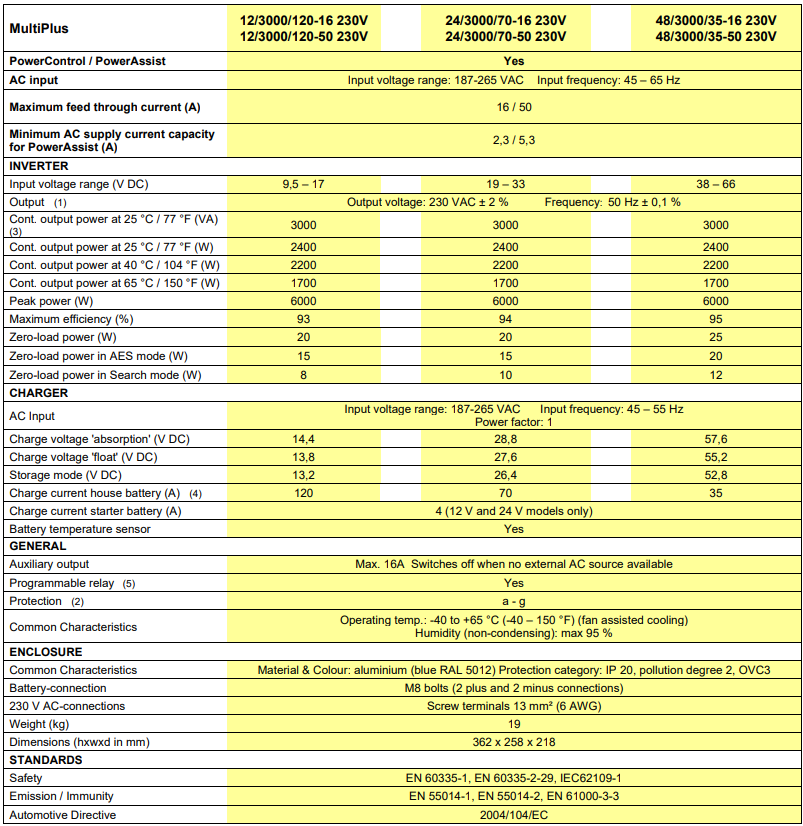

-MultiPlus 12V
3000A - 120/16 - Height: 362mm / Width: 258mm / Length: 218mm - 18 kg
3000A - 120/50 - Height: 362mm / Width: 258mm / Length: 218mm - 18 kg
-MultiPlus 24V
3000A - 70/16 - Height: 362mm / Width: 258mm / Length: 218mm - 18 kg
3000A - 70/50 - Height: 362mm / Width: 258mm / Length: 218mm - 18 kg

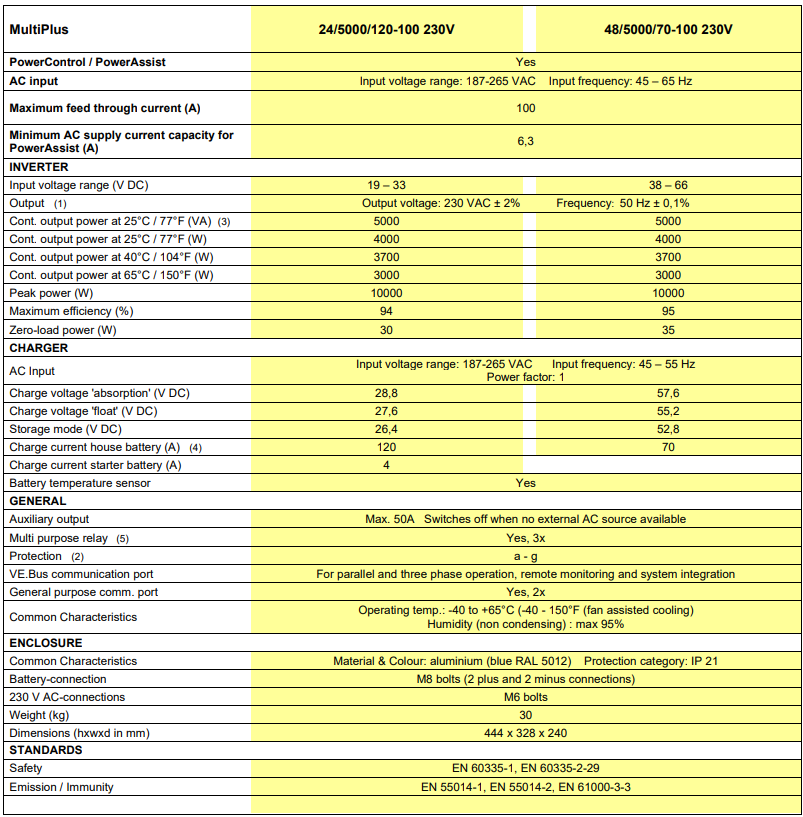

5000A - 120/100 - Height: 444mm / Width: 328mm / Length: 240mm - 30 kg
-MultiPlus 48V
3000A - 35/16 - Height: 362mm / Width: 258mm / Length: 218mm - 18 kg
3000A - 35/50 - Height: 362mm / Width: 258mm / Length: 218mm - 18 kg
5000A - 70/100 - Height: 444mm / Width: 328mm / Length: 240mm - 30 kg
-
-
Manual_Automatic Generator Start-stop.pdf
Manual_Connecting other Lithium Battery Systems to Multis & Quattros.pdf
Manual_Energy Storage System.pdf
Manual_MultiPlus 3k 230V - 16A 50A.pdf
Manual_MultiPlus 5k 100A 230V.pdf
Service Manual_Service Manual - MultiPlus 3k 120V.pdf
User Manual_User Manual - MultiPlus 3k 120V.pdf
VictronConnect Configuration Guide_VE.Bus Products.pdf
Quick Installation Guides_MultiPlus 12/24/48V 3000VA 50A.pdf
Quick Installation Guides_MultiPlus 24/48V 5000VA 230Vac.pdf
Quick Installation Guides_MultiPlus 12/24/48V 3000VA 16A 230Vac.pdf
——————————————————————————————————
Technical Information_Achieving the Impossible.pdf
Technical Information_Adaptive Charging - How does it work?.pdf
Data Communication_Victron Energy Products.pdf
Technical Information_Engine Driven Inverter System.pdf
MK2 Protocol_Interfacing with VE.Bus Products.pdf
Test Report_Marine Generator Test 2007 - Test Report.pdf
Bench Test Instructions_Pre-RMA.pdf
Technical Information_Reducing Cost of Off-Grid Telecom BTS.pdf
Technical Information_The Energy Unlimited Book.pdf
Using the MultiPlus_Reduce Operating Cost of a Generator.pdf
-
-
-
