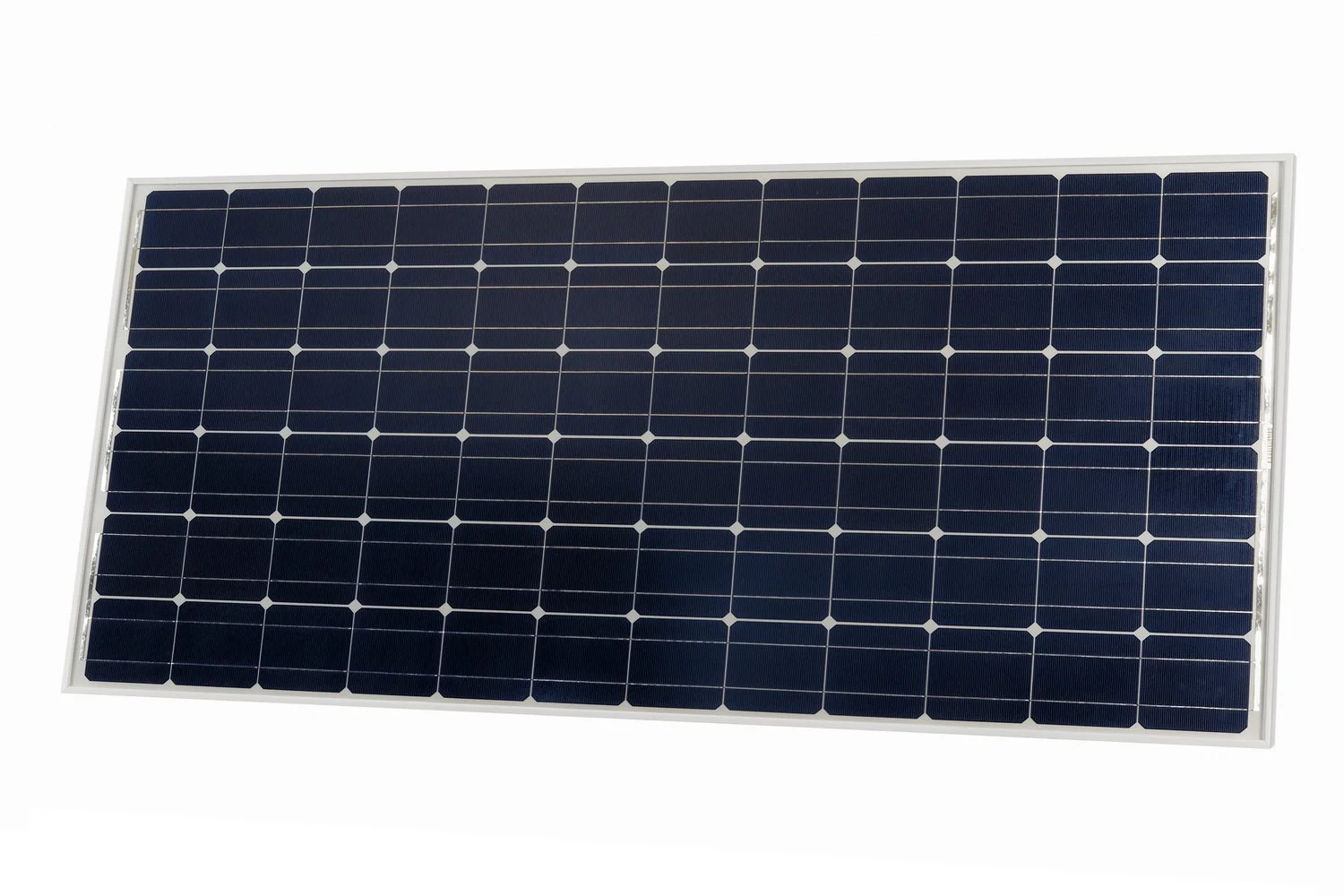

BlueSolar Monocrystalline Panels (12V/20V/24V)
• Low voltage-temperature coefficient enhances high-temperature operation.
• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
• 25-Year limited warranty on power output and performance.
• 5-Year Limited warranty on materials and workmanship.
• Sealed, waterproof, multifunctional junction box gives high level of safety.
• High performance bypass diodes minimize the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
• Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
• Pre wired quick-connect system with PV-ST01 connectors.
• Low voltage-temperature coefficient enhances high-temperature operation.
• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
• 25-Year limited warranty on power output and performance.
• 5-Year Limited warranty on materials and workmanship.
• Sealed, waterproof, multifunctional junction box gives high level of safety.
• High performance bypass diodes minimize the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
• Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
• Pre wired quick-connect system with PV-ST01 connectors.
• Low voltage-temperature coefficient enhances high-temperature operation.
• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
• 25-Year limited warranty on power output and performance.
• 5-Year Limited warranty on materials and workmanship.
• Sealed, waterproof, multifunctional junction box gives high level of safety.
• High performance bypass diodes minimize the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
• Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
• Pre wired quick-connect system with PV-ST01 connectors.
-
-BlueSolar Monocrystallnie Panels 12V - 36 Cells
20W - Height: 440mm / Width: 350mm / Length: 25mm - 1.9 kg
30W - Height: 560mm / Width: 350mm / Length: 25mm - 2.2 kg
40W - Height: 425mm / Width: 668mm / Length: 25mm - 3.1 kg
55W - Height: 545mm / Width: 668mm / Length: 25mm - 4 kg
90W - Height: 780mm / Width: 668mm / Length: 30mm - 6.1 kg
115W - Height: 1015mm / Width: 668mm / Length: 30mm - 8 kg
140W - Height: 1250mm / Width: 668mm / Length: 30mm - 9 kg
175W - Height: 1485mm / Width: 668mm / Length: 30mm - 11 kg
-BlueSolar Monocrystallnie Panels 20V - 60 Cells
305W - Height: 1658mm / Width: 1002mm / Length: 35mm - 18.4 kg
-BlueSolar Monocrystallnie Panels 24V - 72 Cells
215W - Height: 1580mm / Width: 808mm / Length: 35mm - 15 kg
360W - Height: 1980mm / Width: 1002mm / Length: 40mm - 22.5 kg
-
-
-
-
