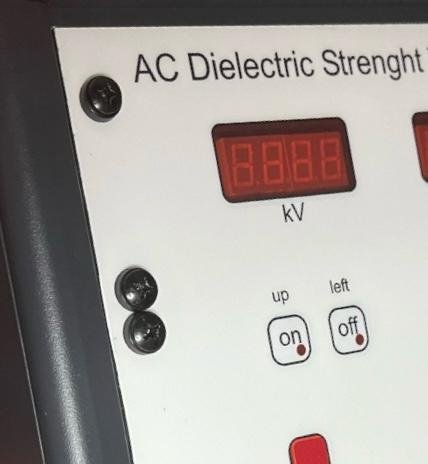

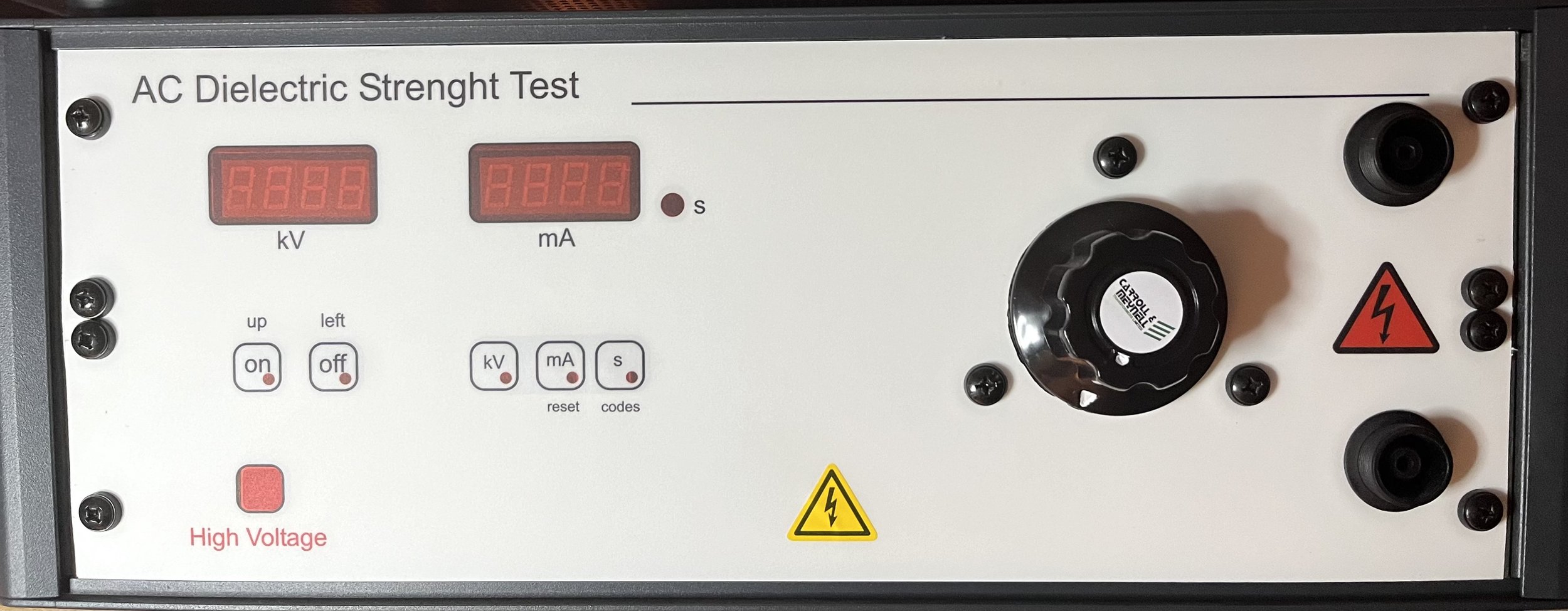

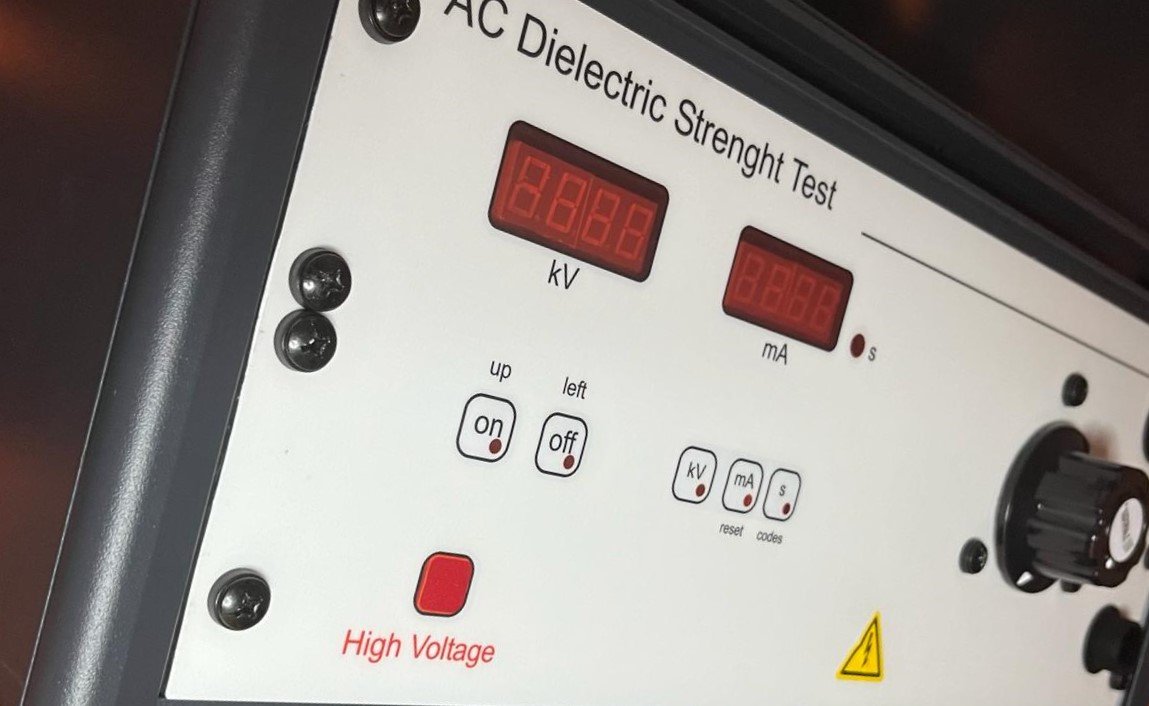

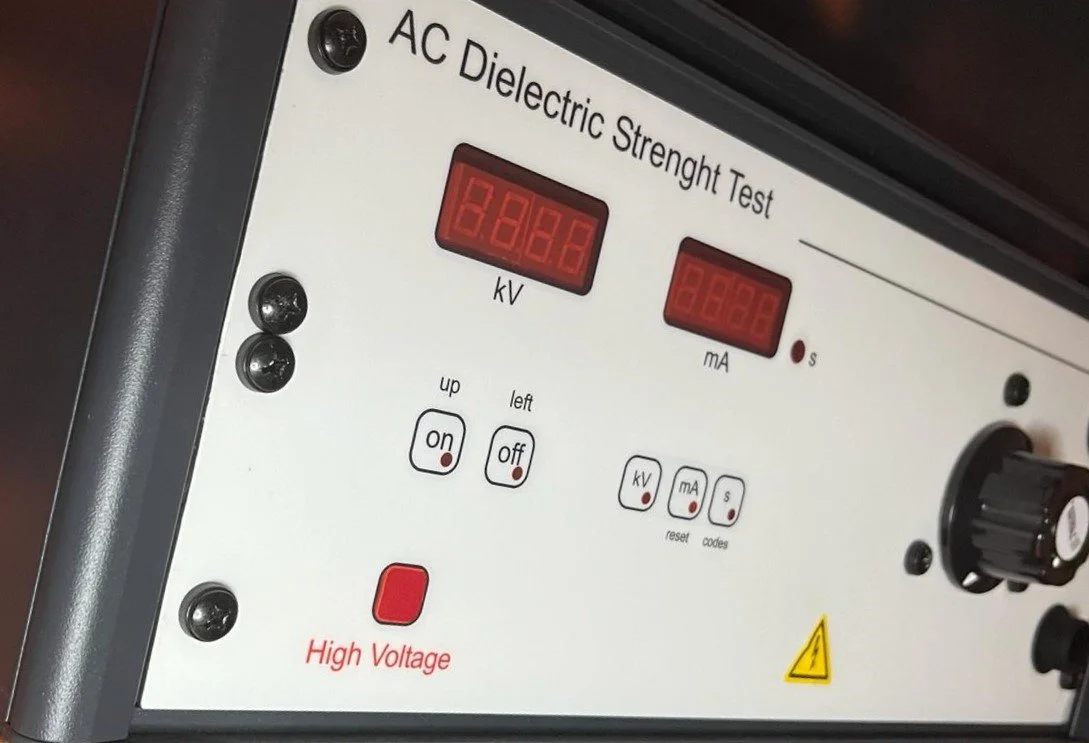

AC Dielectric Test Set
Continuously Variable Output Voltage from 0...full scale
10 μA to 99.99 mA adjustable overload setting (units rated 100mA)
Non destructive test and burning feature
1000 VA max power output (DS6-100)
Audible and visual overload indications
"H.V. ON" Dwell timer 1...9,999 s. and forever
Output-connected, single range memory voltage meter (TRUE RMS).
Single-range memory current meter in return of HV Transformer
Permanent Earth detector before and during the test
User's programable special functions like PIN, Zero Start Interlock, etc..

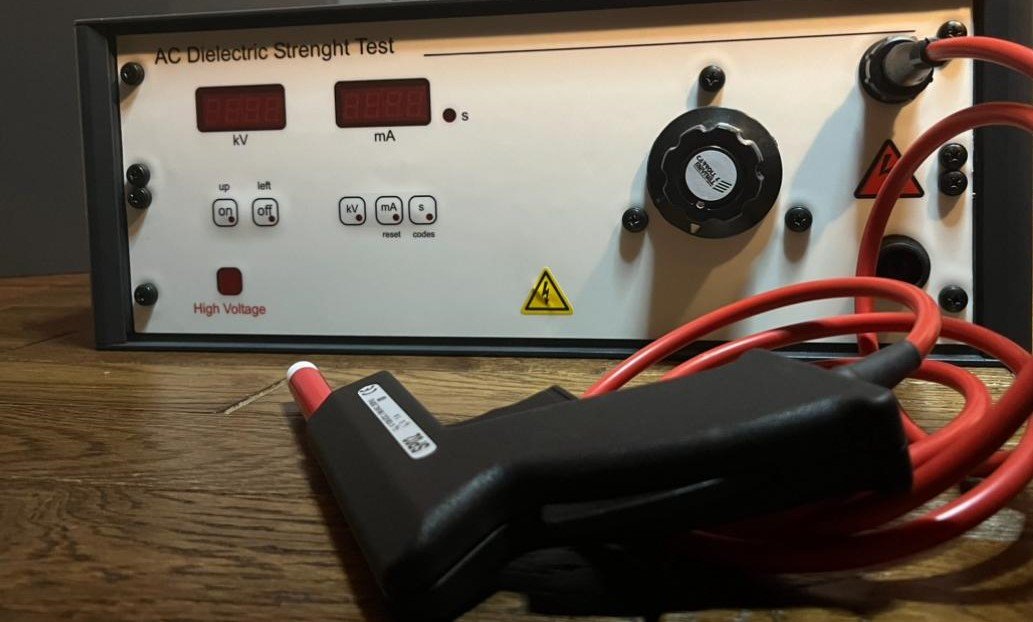

Test Voltage 3kV - 6kV - 10kV are supplied with retractil electrode (test gun)
*delivery tems must be confirmed prior order
*image may differ
