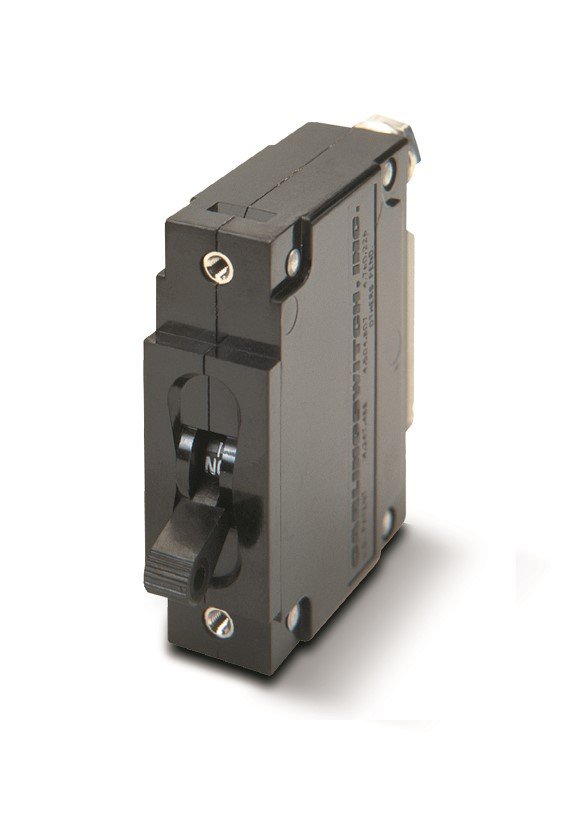

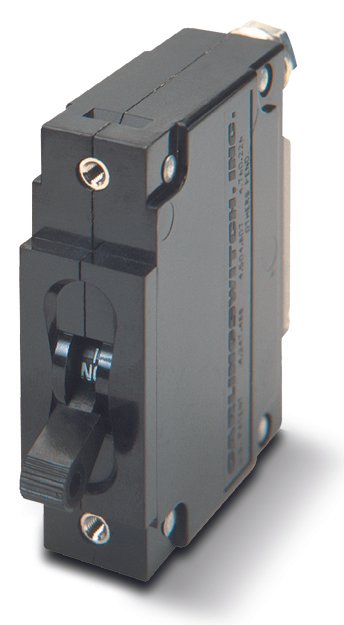

AC circuit breaker (one-pole) - toggle style

AC breaker is a switch and protects your circuit as well

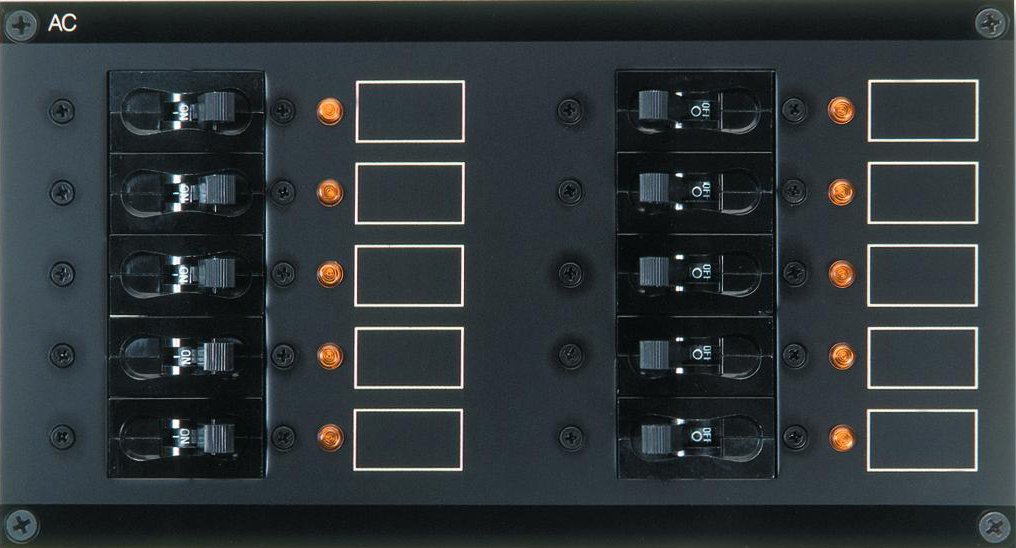

PMS-1DAD (size 1) - 240 x 130 mm has 10 one-pole breakers

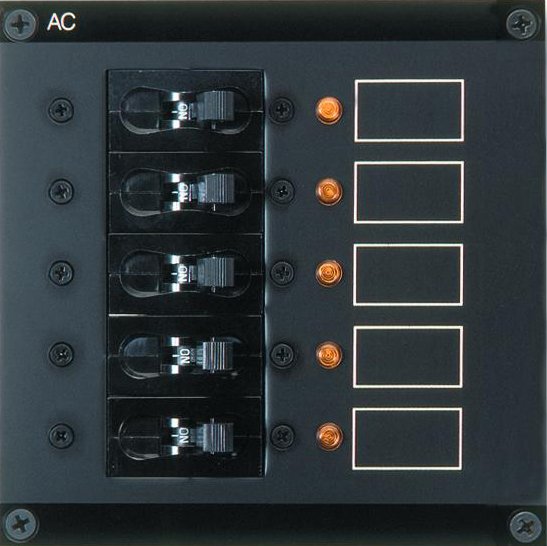

PMS-2DA5 (size 2) - 120 x 130 mm has 5 one-pole breakers

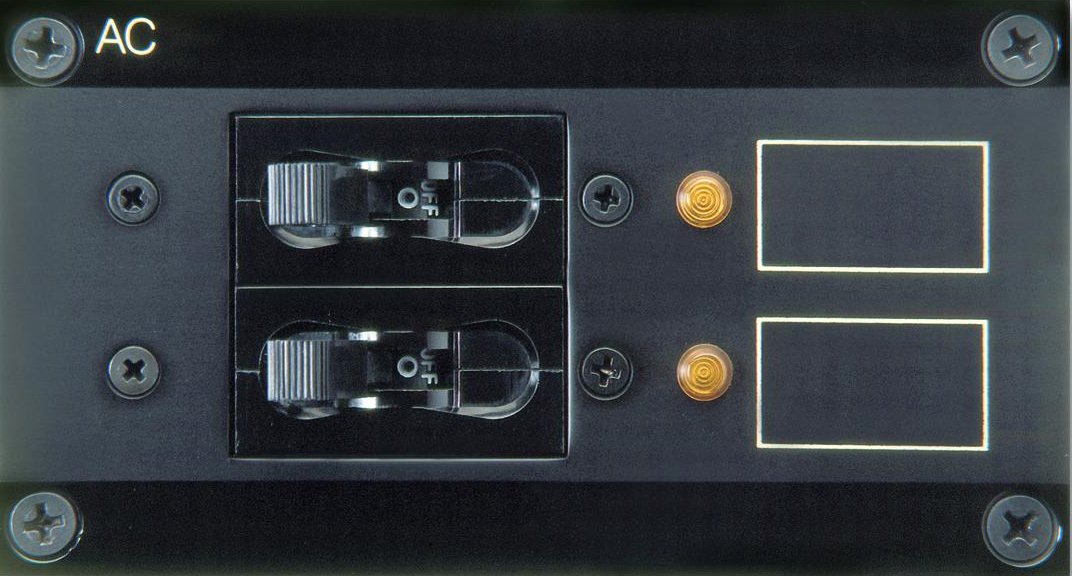

PMS-3DA2 (size 3) - 120 x 65 mm has 2 one-pole breakers

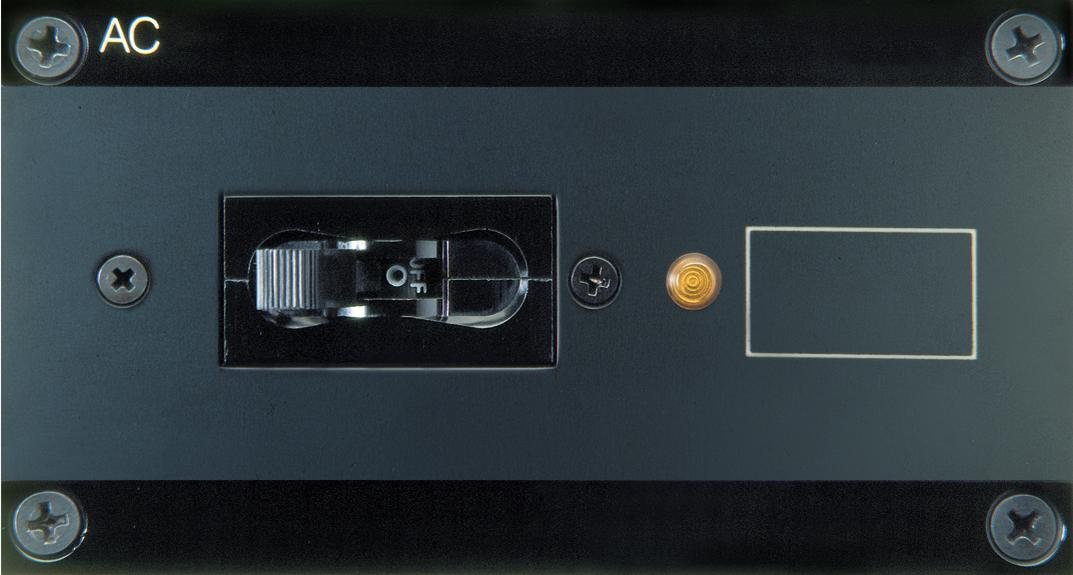

PMS-3DAU (size 3) - 120 x 65 mm has 1 one-pole breaker

One-pole protecction cuts one line (either phase or neutral)

All panels are fit with 10A breakers unless specified otherwise

(10A is the standard breaker and it allows 2400W of load)

Can be customized with any breaker in the range of:

1A -2,5A - 5A - 7,5A - 10A - 15A - 20A - 25A - 30A - 40A - 50A -60A - 80A - 100A

(specify when placing the order)

Bus-Bar for the breakers is supplied when necessary

Do not overload the panel with more than 100A (wire it accordingly)
